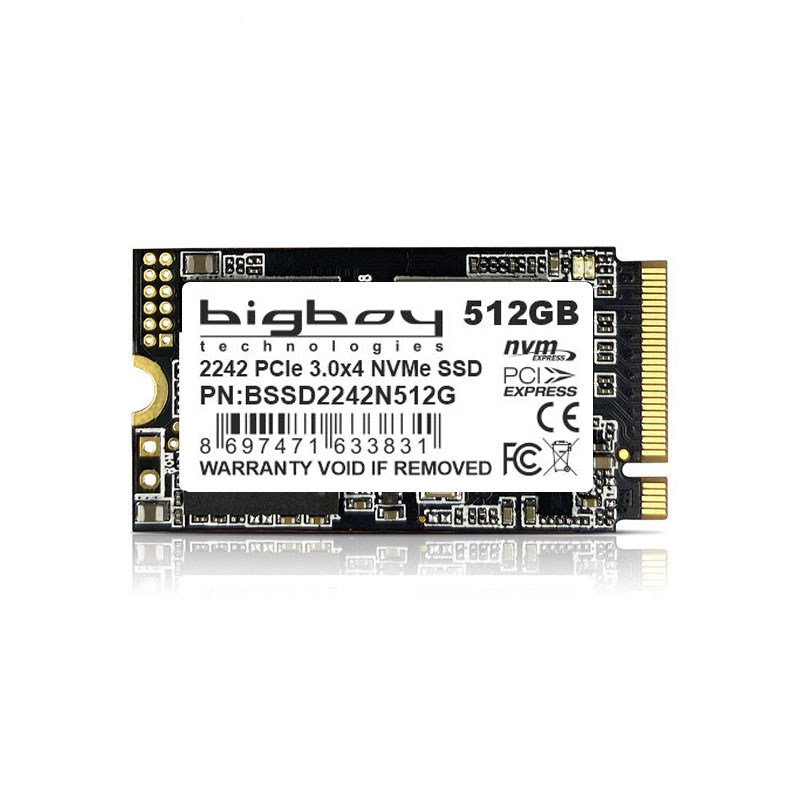

Bigboy M.2 2242 NVMe SSD solution is a storage solution designed for portable systems with limited space like ultrabooks and notebooks. It offers high performance with PCIe Gen3x4 and NVMe 1.3 protocol while extending battery life with low power consumption. With 2100MB/s read and 1700MB/s write speeds, it offers one of the best storage solutions for applications such as games and programs.
Features
- Small form factor, high capacity, endurance and performance thanks to 3D NAND.
- Increased stability with LDPC ECC and 3D TLC chips.
- Compatible with different systems.
- 512GB and 1TB models are single-sided
High Quality Components
Controller and NAND solutions from leading manufacturers.
High Performance in Applications
Powerful data processing capabilities programs load faster and deliver low latency in games.
High Compatibility
High compatibility with different devices and operating systems; it enables flexible solutions.
Specifications
- Part Numbers : BSSD2242N256G, BSSD2242N512G, BSSD2242N1T
- Capacities: 256GB, 512GB, 1TB
512GB and 1TB models are single-sided - Interface : PCIe Gen3x4
- Protocol : NVMe 1.3
- Form Factor : M.2 2242

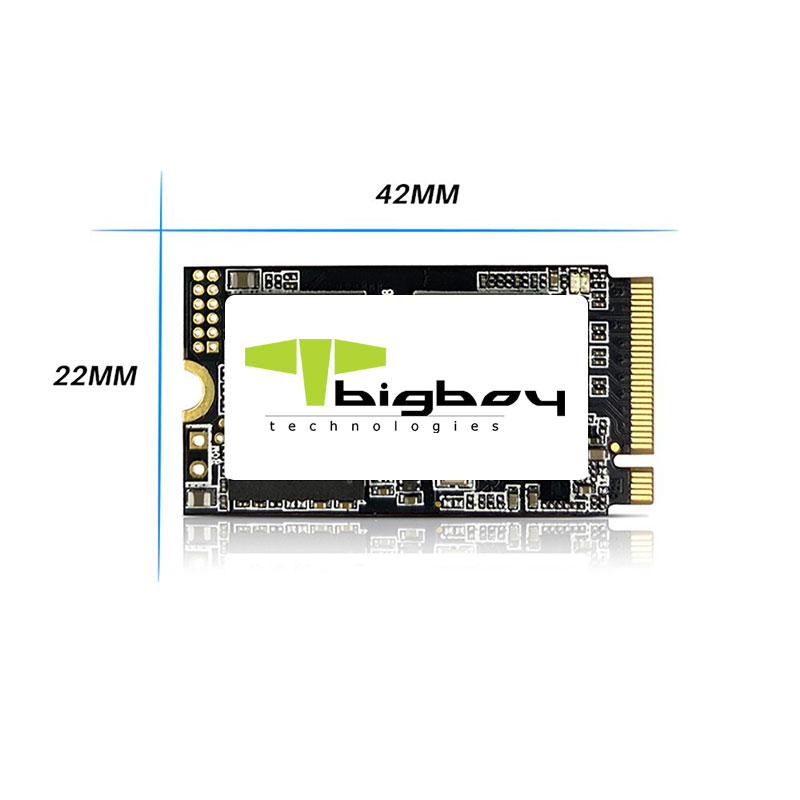

- Dimensions (L x W x H) : 42mm x 22mm x3.15mm
- Weight : <5g
- Transfer Speeds :
| Model | Controller | NAND | PCIe | NVMe | Read (MB/s) | Write (MB/s) | IOPS Read | IOPS Write | TBW |
| BSSD2242N512G | Innogrit IG5216 | YMTC | PCIe Gen 3 x4 | NVMe 1.4 | 2500 | 1600 | 1100K | 1200K | 325 |
| BSSD2242N1T | Innogrit IG5216 | YMTC | PCIe Gen 3 x4 | NVMe 1.4 | 3400 | 2900 | 1400K | 1200K | 650 |
- Operating temperature : 0°C~70°C
- Storage temperature: -40°C~85°C
- Vibration (operating) : 1500G – 0.5ms, Half Sine Wave
- Warranty : Limited 2-year
