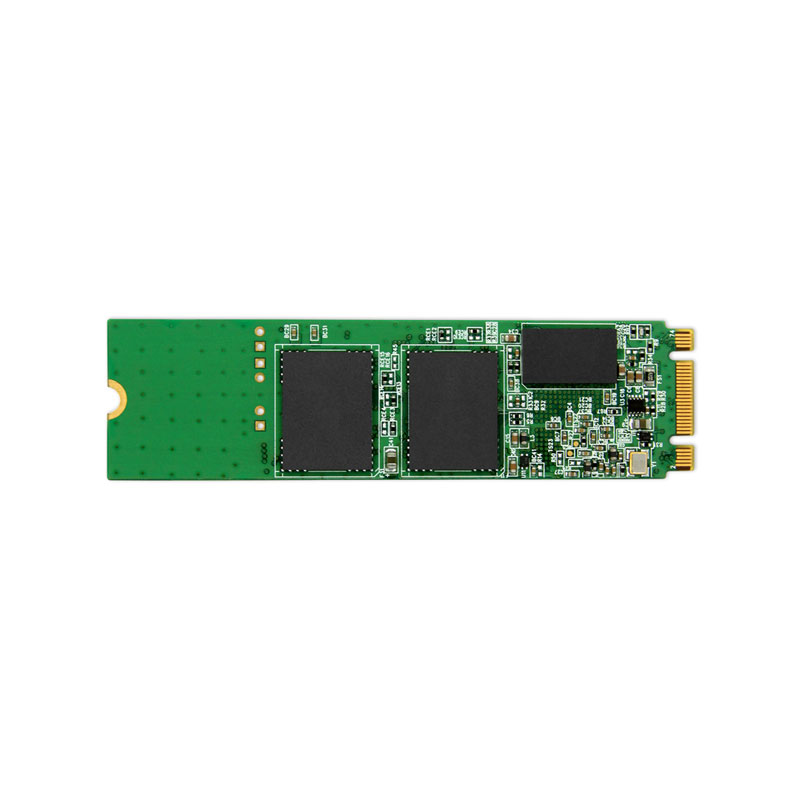

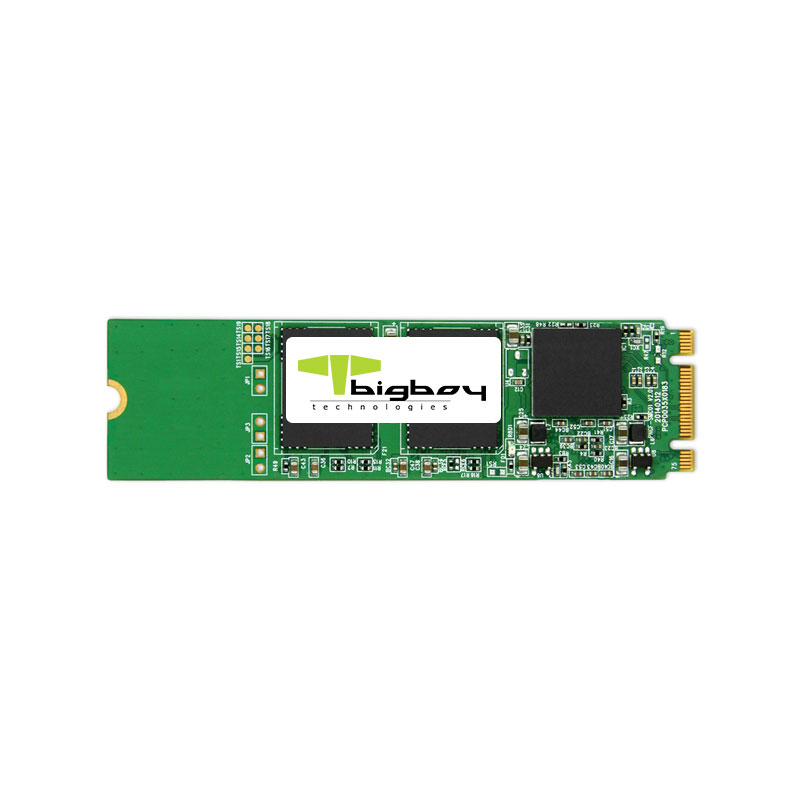

SATA III M.2 SSD is very small and light, enabling the saving of space in small embedded systems and ultra-thin computing devices and can be integrated into the next generation connectors.
It also provides a more quick responsible PC experience and lower power consumption than today’s traditional hard disk drives and SATA SSDs.
- No moving parts to fail
- Super-low operating and standby power needs
- Greater resistance to shock & vibration
- Operates in extreme temperatures (-25° to 85°C)
Specifications
- Part Numbers : BSSD80S128G, BSSD80S256G, BSSD80S512G, BSSD80S1T
- Interface : SATAIII
- Form Factor : M.2 2280
- Capacity(GB) : 32GB/64GB/128GB/256GB/512GB/1TB
- Sequential read/write : 550MB/s (max), 500MB/s (max)
- Op. Temp.(°C) : 0°C~70°C
- Storage Temp.(°C) : -20°C~75°C
- Shock(G) : 1500G, 0.5ms
- Vibration(Hz/G) : 5.0G (Peak-to-Peak), 5Hz to 800Hz (Frequency)
- Dimensions(mm) : 80mm × 22mm × 3.5mm
- Weight : <5g
- Warranty : Three-year Limited Warranty
