2.5 inch IDE Integrator SSD

2.5” PATA IDE SSD complies with ATA 7 standard, delivers extraordinary R/W speed and reliability. And with Internal detectors IC for power loss, over voltage, 2.5” IDE SSD can work as a perfect IDE storage for industrial, automotive and medical areas.



  • No moving parts to fail
  • Super-low operating and standby power needs
  • Greater resistance to shock & vibration
  • Operates in extreme temperatures



Specifications

  • Interface : Standard PATA/IDE (44 pin)
  • Form Factor : 2.5 inch
  • Flash Type : MLC
  • Capacity(GB) : 16GB / 32GB / 64GB / 128GB / 256GB
  • Op. Voltage(V) : 5V±5%
  • Op. Temp.(°C) : -40°C~85°C
  • Shock(G) : 1500G, 0.5ms
  • Vibration(Hz/G) : 5.0G (Peak-to-Peak), 5Hz to 800Hz (Frequency)
  • Dimensions(mm) : 100mm × 69.85mm × 9.5 mm
  • Warranty : Three-year Limited Warranty

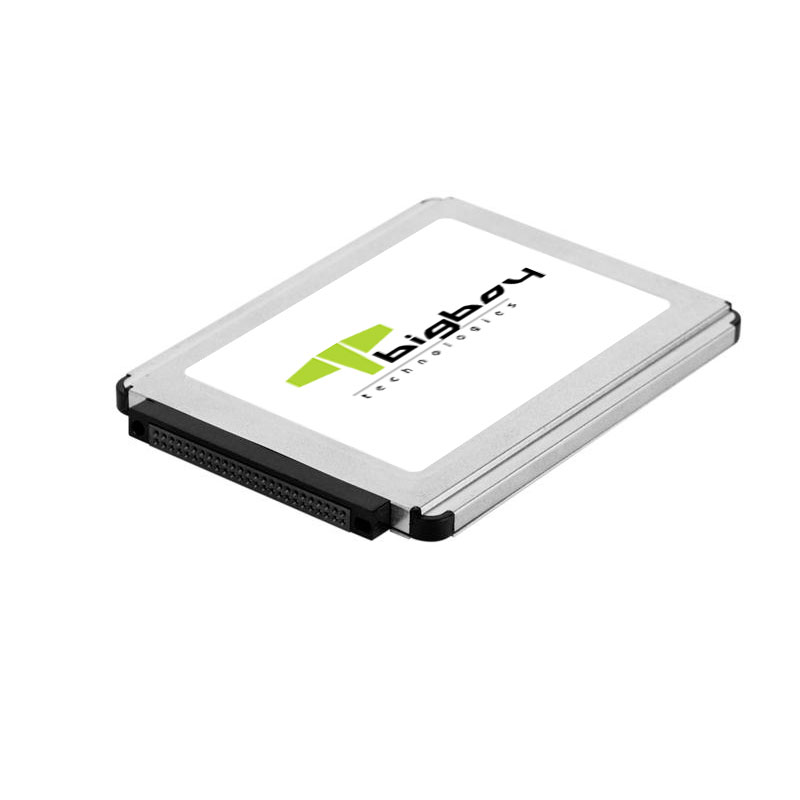

1.8 inch IDE Integrator SSD

1.8” PATA IDE SSD complies with ATA 7 standard, delivers extraordinary R/W speed and reliability. And with Internal detectors IC for power loss, over voltage, […]
