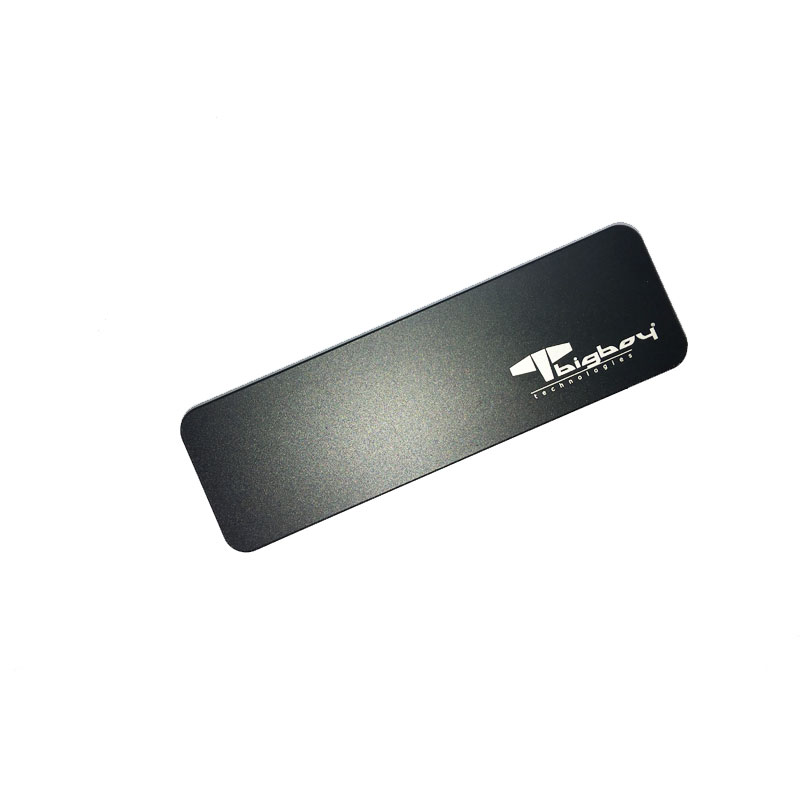

Bigboy M.2 NVMe SSD USB 3.2 Gen 2 Type-C SSD Enclosure

Published









Bigboy M.2 NVMe SSD enclosure allows M.2 PCIe Gen 4 M.2 NVMe drives connected to the system as external drives via high-speed USB 3.2 Gen 2 interface.

Part Number: BTC-M2NV4CS

Updated JMS583 controller enables connection to M.2 PCIe Gen 4 NVMe SSD drives via USB 3.0/2.0 and USB 3.1 slots. It can be used with all old and new systems with the cables provided with the product. However, for USB 3.2 Gen 2 performance, the drive must be plugged into a USB 3.2 Gen 2 port.

TYPE-C

Easily connect the enclosure to your system. The bi-directional design makes plugging in the Type-C connector much simpler. USB Type-C to Type-C and Type-A to Type-C cables are included for easy use with all systems.



Easy Connection

Designed for use with M.2 2280 -80mm NVMe drives.

The USB 3.2 Gen 2 interface offers transfer speeds of up to 10Gbps. With transfer speeds of 1000MB/s, it takes only 1 second to transfer a 1GB file. The transfer of big data takes seconds.

Durable and Robust

It has a robust aluminum alloy body and unique CNC machining technology. Built tough and durable to withstand drops from up to 2 meters.











Internal and external cooling

The all-aluminum body provides excellent heat dissipation. The Thermal Pads applied on the SSD drive and the aluminum body structure ensure that the heat is quickly dissipated and the internal temperature is reduced. It helps the drive to operate without performance loss.









Safety with high quality components

Thanks to the JMS583 chip, can be used with systems with USB 3.2 20Gbps, USB 3.2 10Gbps, USB 3.0 5Gbps and USB 2.0 interfaces.

Supports TRIM, ASPM, UASP Acceleration and Sleep Mode functions.











Compatible with M.2 NVMe 2280 drives

Compatible with 22x80mm M.2 NVMe drives. Not compatible with M.2 SATA and M.2 PCIe-AHCI drives.

Package Content



  • 1 – USB 3.2 Gen 2 M.2 PCIe NVMe SSD enclosure
  • 1 – USB 3.1 Type-A –  Type-C cable
  • 1 – USB 3.1 Type-C –  Type-C cable
  • 1 – Screwdriver
  • 10 – Thermal pad
  • 1 – M.2 SSD Mounting screws

Specifications

  • Part Number : BTC-M2NV4CS
  • Dimensions : 103mm x 28,5mm x 10,5mm
  • Bus Interface : PCIe Gen4 x2 ( Not compatible with PCIe-AHCI and SATA drives.)
  • Connection Interface : Type-C USB 3.2 Gen 2 ( Compatible with USB 3.2, USB 3.0 and USB 2.0 )
  • Operating Voltage : DC 5V
  • Operating Temperature : 0°C – 70°C
  • Satorage Temperature : -40°C ile 85°C aralığı
  • Warranty : 2 Years
  • System Requirement : Desktop or laptop computer with Thunderbolt 4 / USB4,  Gen3 x2 (USB 3.2 and USB 2.0 ports) with the following operating systems installed:
    Microsoft Windows 7  or later Mac OS X 10.7 or later
    For maximum performance, the enclosure should be installed in a USB 3.2 Gen 2 (10Gbps) port.
