DDR4 2666MHz SODIMM Notebook Memory

Bigboy Technologies use industry leader Samsung DDR4 modules.

With PC applications becoming more critical and complex, personal computing has set its toughest demands yet. PCs today need to provide exceptional speed to deliver the performance required.

Bigboy DDR4 2666 SODIMMs (Small Outline DIMM) are JEDEC-compliant modules designed to fit systems with limited space; notebook computers, ultrabooks, tablets, small-sized industrial computers and embedded systems. Manufactured with the highest quality DRAM chips, rigorously tested for quality and verified for compatibility, Bigboy SODIMMs are are highly stable and compatible, high performance memory modules.

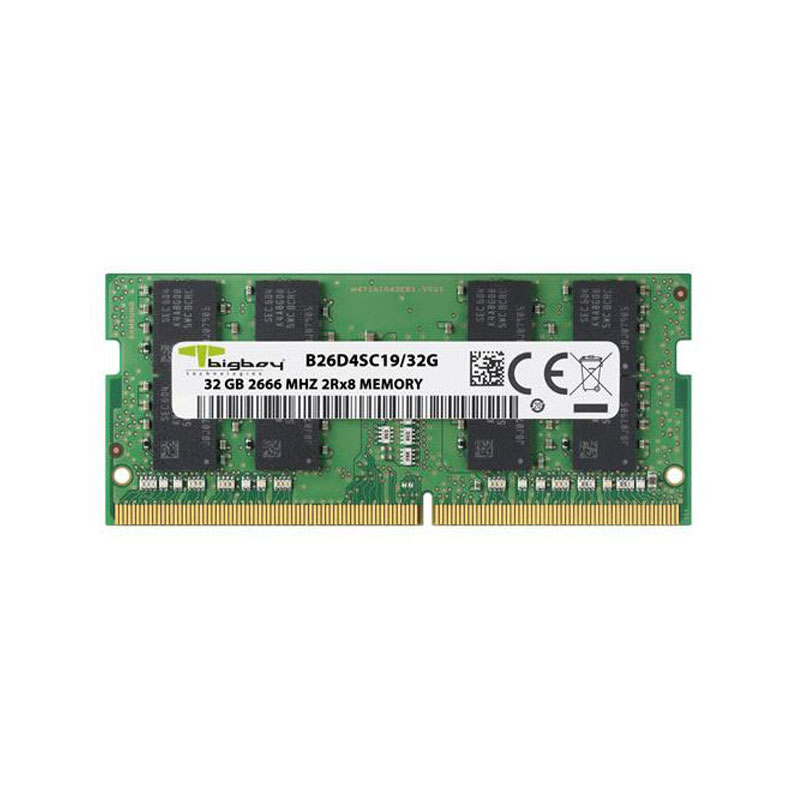

Products : B26D4SC19/4G, B26D4SC19/8G, B26D4SC19/16G, B26D4SC19/32G



Specifications
  • Capacity : 4GB, 8GB, 16GB, 32GB
  • Speed : DDR4-2666, PC4-21300
  • Latency : CL=19, tRCD=19, tRP=19
  • Organization : (512M x 16) x 4 (4GB), (1G x 8) x 8  (8GB), (1G x 8) x 16 (16GB), (2G x 8) x 16 (32GB)
  • Rank : 4GB – Single Rank 1R x 16, 8GB – Single Rank 1Rx8, 16GB – Dual Rank 2Rx8, 32GB – Dual Rank 2Rx8
  • Number of Pins : 260
  • Voltage : 1.2V
  • Warranty : Limited Lifetime
  • Part Numbers : B26D4SC19/4G Datasheet, B26D4SC19/8G Datasheet, B26D4SC19/16G Datasheet, B26D4SC19/32G Datasheet
